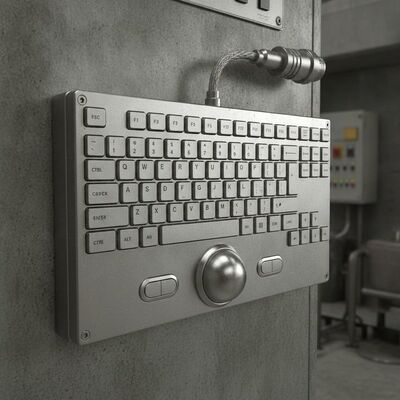

Explosionproof Stainless-Steel Keyboard with Maintenance-Free Trackball and IP65/IK07-Rated Protection for Hazardous Environments

Industrial Stainless-Steel Keyboard with Trackball F3-TB38-B waterproof dustproof explosionproof

1. Technical Specifications

Maintenance-free 38mm stainless steel trackball — the sealed bearingless design eliminates periodic disassembly for cleaning or lubrication, directly reducing technician callouts in locations that are difficult or dangerous to access.

IP65/IK07-rated waterproof, dustproof, and explosionproof protection ensures safe operation in hazardous environments with flammable dust, gases, or frequent chemical contamination.

Over 2 million keystroke life cycle guarantees sustained performance in continuous public usage without premature failure.

Panel board and keys constructed from SUS304 stainless steel (SUS316 available as upgrade) for corrosion resistance in chemically aggressive or moisture-rich settings.

USB Type-A interface with plug-and-play compatibility across Windows, macOS, Unix, Linux, ArmOS, and Android.

2. Mechanical Features & Environmental adaptability

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4. Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

5. Installation drawing

6. APPLICATION  SITE

Targeted for unsupervised or semi-supervised public access points where explosive atmospheres or frequent contamination make regular maintenance impractical: grain silo loading terminal keypads, chemical plant entry stations, pharmaceutical cleanroom access panels, underground mining equipment interfaces, oil refinery payment kiosks, paint booth control panels, and wastewater treatment facility terminals where sealing prevents flammable vapor ignition and the maintenance-free trackball reduces technician callouts in hard-to-reach locations.

7. More pictures:

If you have any question about this items,please feel free to contact us for further information.
