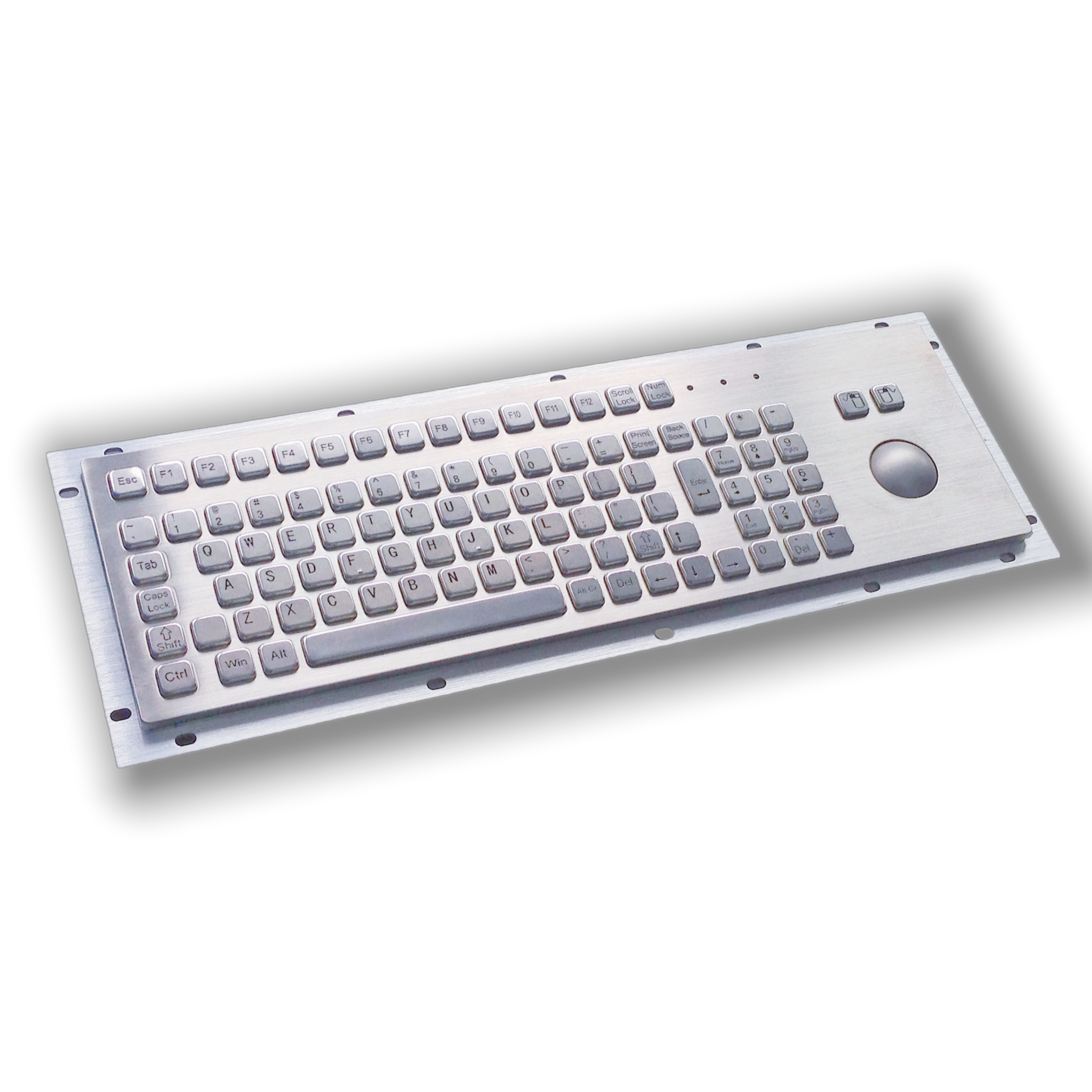

Industrial Stainless-Steel Keyboard with Trackball F3-TB38-B waterproof dustproof explosionproof
1. Technical Specifications
The keyboard has waterproof, dustproof & explosionproof features (IP65/IK07).
Over 2 million key life cycle.
Industrial stainless-steel keyboard, integrates with maintenance-free design 38mm stainless-steel trackball.
The panel board and keys are made of SUS304 stainless-steel (SUS316 optional).
USB port (Type-A) interface, plug & play for common operating systems, such as MS-Windows, MacOS, Unix, Linux, ArmOS, Android.
2. Mechanical Features & Environmental adaptability
| Panel board and keys material |
SUS304 stainless-steel |
| Base board material |
Aluminum alloy |
| Key life cycle |
2 million min |
| Key press force |
2~3N |
| Key travel length |
2MM |
| Dimensions |
416 * 134 * 55MM |
| Weight |
1550g
|
| Operating temperature |
-40℃～+65℃
|
| Operating RH |
10～95%
|
| Storage temperature |
-40℃～+75℃
|
| Storage RH |
5～95%
|
| Protection grade |
IP65/IK07
|
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4. Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6. APPLICATION SITE
This keyboard is mainly targeted for use in unsupervised or semi-supervised positions of various access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), internet public phones, etc.

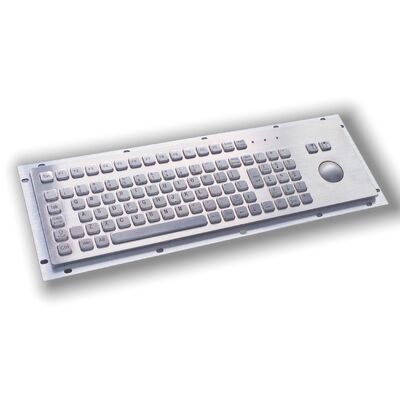

7. More pictures:
If you have any question about this items,please feel free to contact us for further information.
