1. Technical Specifications

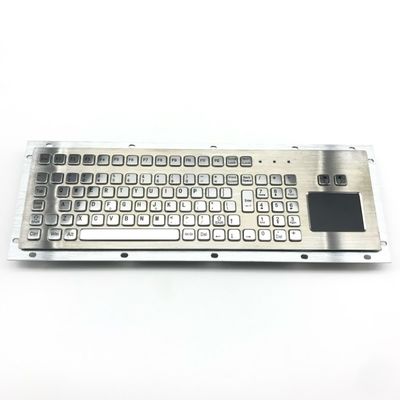

Heavy‑duty stainless steel keyboard with integrated 2‑key touchpad, engineered for demanding industrial and public environment installations.
Rated IP65 (dust‑tight and protected against water jets) and IK07 (high‑impact resistance) – withstands spills, wash‑downs, and physical abuse.
Exceeds 2 million keystroke lifecycle for reliable, maintenance‑free operation in continuous‑use applications.
Panel and keys constructed of SUS304 stainless steel (SUS316 optional) to resist corrosion, chemicals, and weathering.
Plug‑and‑play USB Type‑A interface compatible with Windows, macOS, Linux, Android, and ARM‑based kiosk/control systems.
2. Mechanical Features & 3. Environmental adaptability
| Panel board and keys material |
SUS304 Stainless-steel |
| Base board material |
Aluminum alloy |
| Key life cycle |
2mil min |
| Key press force |
2~3N |
| Key travel length |
2MM |
| Dimensions |
424*148*24MM |
| Weight |
1260g |
| Operating temperature |
-40℃～+65℃ |
| Op. RH |
10～95% |
| Storage temperature |
-40℃～+75℃ |
| Storage RH |
5～95% |
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4. Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6. APPLICATION SITE
7. more pictures:
8.Please note:
All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.
