Technical Specifications

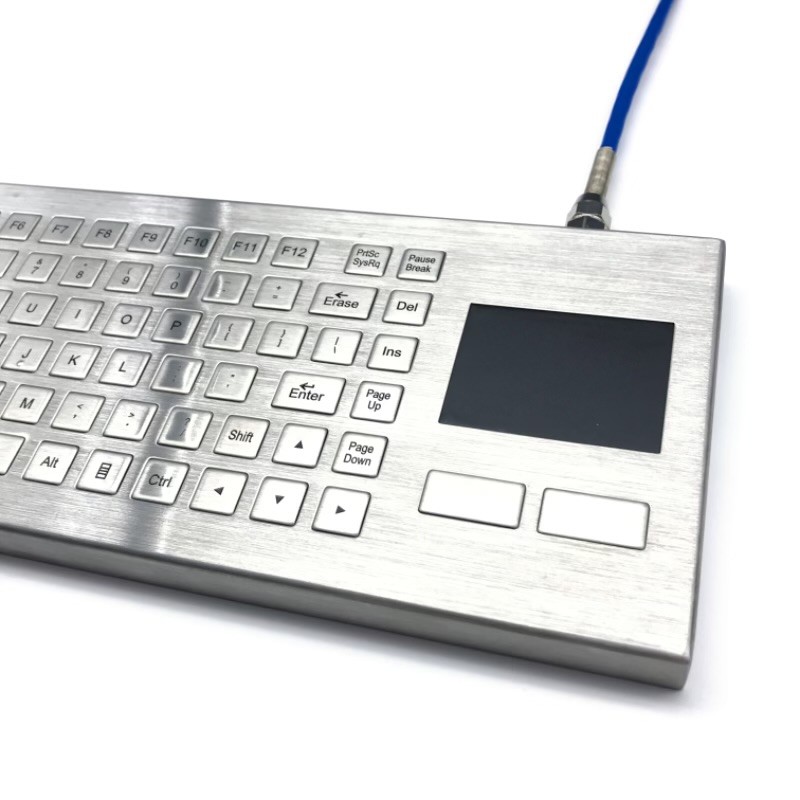

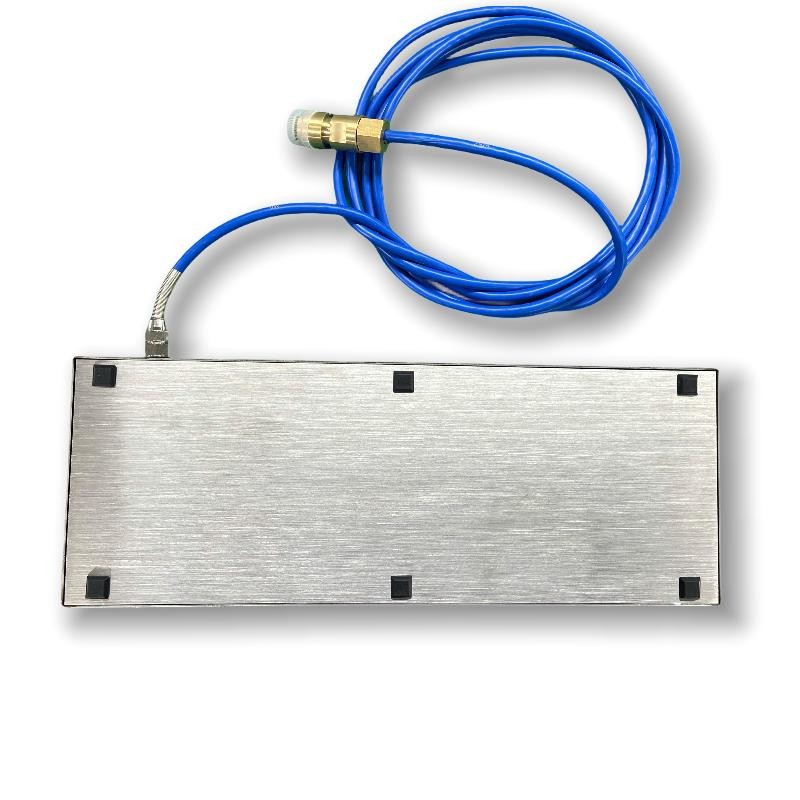

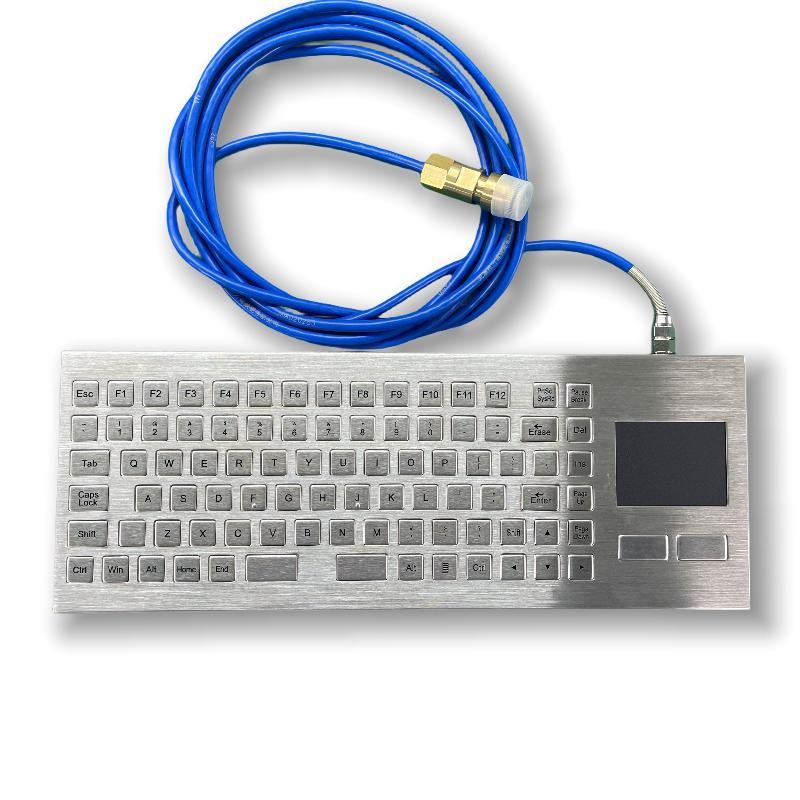

Industrial Stainless Steel Desktop Console with Integrated Touchpad

Engineered for extreme-duty environments, this all-metal desktop keyboard integrates a full-featured 2-key touchpad into a single, robust unit. Built to withstand the harshest conditions, it delivers uncompromising input reliability for mission-critical industrial and hazardous applications.

Core Resilience & Certification:

Environmental Sealing:​ Rated IP67 for complete protection against dust ingress and temporary immersion in water.

Physical Durability:​ Achieves IK07 impact resistance to endure direct physical force and deliberate vandalism.

Hazardous Location Safety:​ Designed with explosion-proof characteristics for use in potentially volatile atmospheres.

Engineering & Longevity:

Extended Service Life:​ Precision key switches are rated for over 2 million cycles, ensuring long-term operational integrity.

Material Options:​ Standard construction utilizes corrosion-resistant SUS304 stainless steel for the chassis and keys, with SUS316 marine-grade stainless steel available for highly corrosive environments.

Enhanced Safety Option:​ An optional signal isolation barrier can be integrated to provide intrinsic safety (IS) for electrical protection in hazardous areas.

Connectivity & Compatibility:

Universal Interface:​ Features a standard USB Type-A port for true plug-and-play functionality.

Cross-Platform Support:​ Fully compatible with a wide range of operating systems, including MS-Windows, macOS, Unix/Linux, ArmOS, and Android, ensuring seamless integration into diverse control systems.

This console combines the familiarity of a desktop keyboard with the ruggedness required for industrial automation, public safety, oil and gas, and maritime applications, delivering a reliable and safe human-machine interface where failure is not an option.

Mechanical Features

Panel board and keys material: SUS304 Stainless-steel

Polyurethane ( PU) pouring sealing

Key life cycle: 2 million min.

Key press force: 2~3N

Key travel length: 0.6MM

Dimensions: 386*143*21.5MM

Weight: 3500g

Environmental adaptability

Op. Temp: -40℃～+65℃,

Op. RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP67 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

Installation drawing
