Technical Specifications

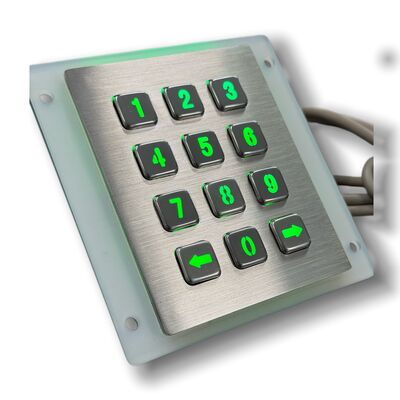

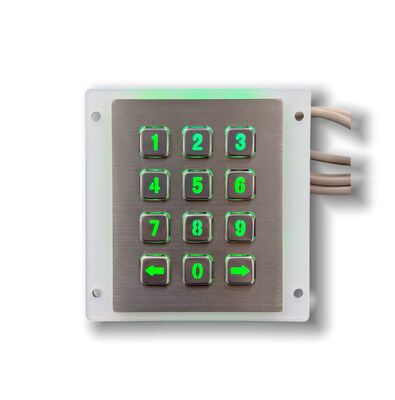

Stainless-steel 12 keys Industrial numberic keypad.
Compact design and highly reliable.
Bachlight funtion is optional.
Provide waterproof, dustproof & violence resistenedfeatures (IP65 /IK07 ).
Long-life keys with over 2mil key life cycle.The panel board and keys are made by SUS304Stainless-steel (SUS316 is for option ).
Integrade Buzzer which gives a "BEEP" when anykeypushed.

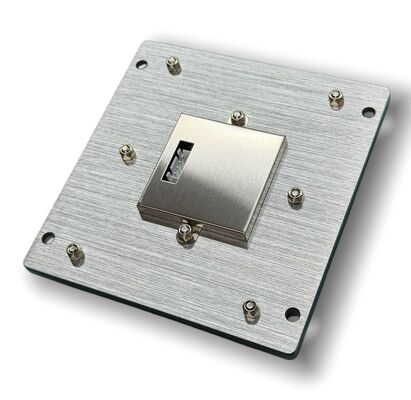

USB port (Type-A) interface, plug & play for commonoperation system,
such as MS-windows / MacOS /Unix / Linux / ArmOS / Android.
Mechanical Features & Environmental adaptability
| Panel board and keys material |
SUS304 Stainless-steelBase board |
| Alumium alloyKey life cycle |
2mil min |
| Key press force |
2~3N |
| Key travel length |
0.6MM |
| Dimensions |
106*110*16MM |
| panel size |
100*91.5MM |
| Weight |
275g |
| Op. Temp |
-40°C~+65°C |
| Op. RH |
10~95% |
| Storage temperature |
-40°C~+75°C |
| Storage RH |
5~95% |
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003EN55024:1988+A1:2001+A2:2003ESD protection: 15KV
Keyboard Language
Defult keyboard language is US.Optional for customized different languages,such as Spanish, French, German, Portuguese,Russian, Arabic etc.
Application site
Outdoor Parcel & Locker Systems – Enter pickup codes, tracking numbers, or locker PINs even in wet weather
External Access Control Panels – Input door codes, ID numbers, or visitor credentials at building entrances and gates
Weather‑Exposed Kiosks – Handle public inputs at outdoor ticket machines, information points, or payment terminals
Industrial & Logistic Keypads – Key in order numbers, verification codes, or short data entries in docks, yards, or uncovered stations
Featuring corrosion‑resistant stainless steel construction, rugged key mechanics, and a plug‑and‑play USB interface, the MT‑12 ensures reliable, maintenance‑free numeric entry wherever water, spills, or weather exposure are a daily reality.
PS:Key definition can be customized.
