1.Technical Specifications

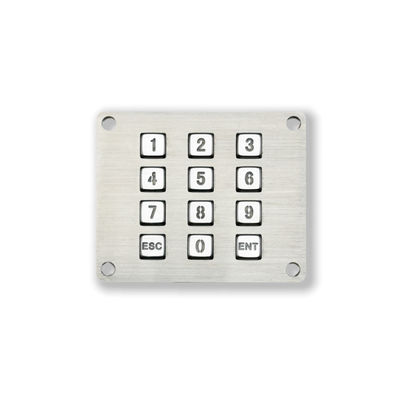

Stainless-steel 12 keys Industrial numberic keypad.
Compact design and highly reliable.
Provide waterproof, dustproof & violence resistened features ( IP65 / IK07 ).
The keypad is backlit-ready, so that all character can light-up when plugin.
(The back light colours can be customized.)
Long-life keys with over 2mil key life cycle.
The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).
USB port (Type-A) interface, plug & play for common operation system,
such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2.Mechanical Features & Environmental Adaptability
| Panel board and keys material |
SUS304 Stainless-steel |
| Key life cycle |
2mil min |
|
Key press force
|
2~3N |
| Key travel length |
0.6MM |
| Dimensions |
114*94*13MM |
| Weight |
230g |
| OperatingTemperature |
-40℃～+65℃ |
| Operating RH |
10～95% |
| Storage temperature |
-40℃～+75℃ |
| Storage RH |
5～95% |
| Protection grade |
IP65 / IK07 |
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
3.Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
4.Installation Drawing
5.Application Site
This KeyPad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
