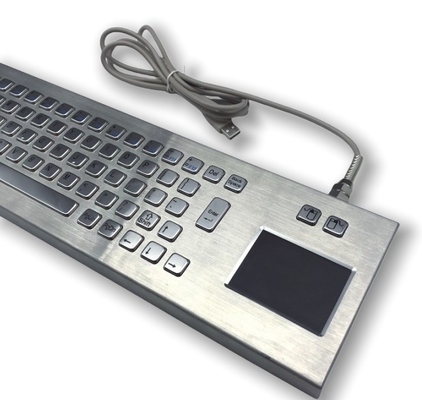

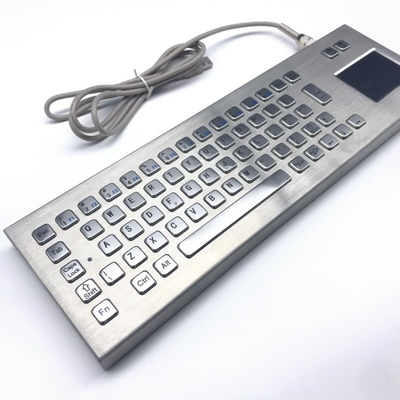

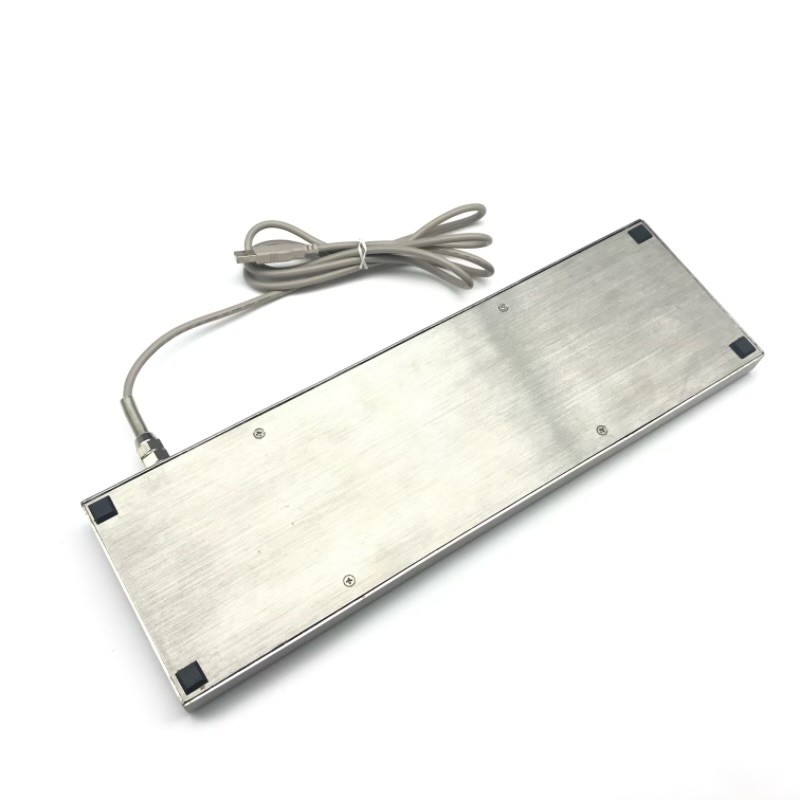

IP65 / IK07 Industrial PC Keyboard Explosionproof Stainless Steel Keyboard

1. Technical Specifications

Industrial stainless-steel keyboard, integrate with full functional 2 keys Touch-pad.

Provide waterproof, dustproof, violence resist & explosionproof features ( IP65 / IK07 ).

Highly reliable design, over 2million key life cycle.

The keyboard case and keys are made by SUS304 stainless-steel ( SUS316 is for option ).

USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

2. Mechanical Features

Case and keys material: SUS304 Stainless-steel

Key life cycle: 2million min.

Key press force: 2~3N

Key travel length: 2MM

Dimensions: 416*134*24MM

Weight: 1650g

3. Environmental adaptability

Operating temperature: -40℃～+65℃,

Operating RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP65 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4. Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

5. Installation drawing

6. APPLICATION  SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

If you have any question about this items,please feel free to contact us for further information.
