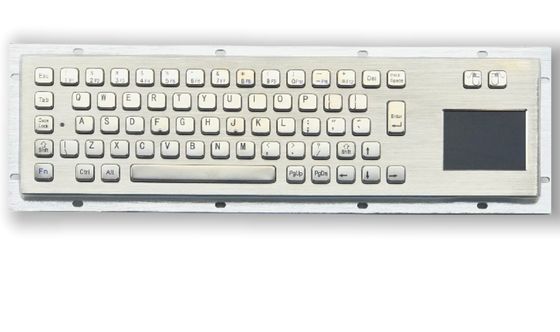

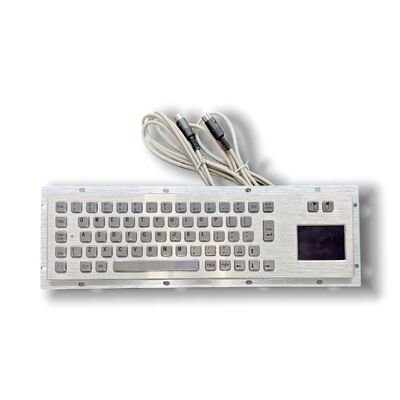

IP65 Waterproof IK09 Impact Resistant Kiosk Selfservice Keyboard with Integrated Touchpad for Industrial Stainless Steel Keyboard Applications

Combining durable industrial-grade construction with convenient cursor control, this stainless steel keyboard with an integrated capacitive touchpad offers a practical input solution for modern self-service and industrial applications.

The integrated 62 × 45 mm capacitive touchpad, equipped with two dedicated physical buttons, enables users to navigate on-screen interfaces and perform mouse operations without connecting a separate pointing device. This space-saving design simplifies equipment integration and provides a more streamlined user experience for interactive terminals.

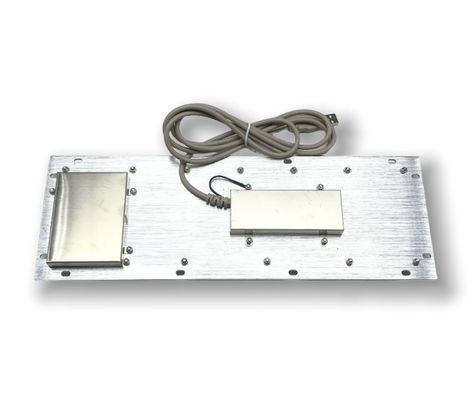

Engineered for demanding public-use environments, the keyboard features a stainless steel front panel and keys, supported by an aluminum alloy base. Its IP65-rated protection against dust and water ingress, together with IK09 impact resistance, helps protect the device in environments where equipment may be exposed to frequent handling, accidental impacts, or attempted vandalism.

Designed for dependable, long-term operation, the keyboard supports a minimum of 2 million keystrokes and operates across a wide temperature range of -40°C to +65°C. Its USB Type-A interface offers straightforward connectivity with a variety of mainstream operating systems, making system integration simple and convenient.

This integrated keyboard and touchpad solution is particularly suitable for kiosk self-service terminals, payment systems, ticket vending machines, information terminals, access control equipment, and industrial human-machine interface (HMI) systems. It provides both text input and pointer control in a compact, durable assembly.

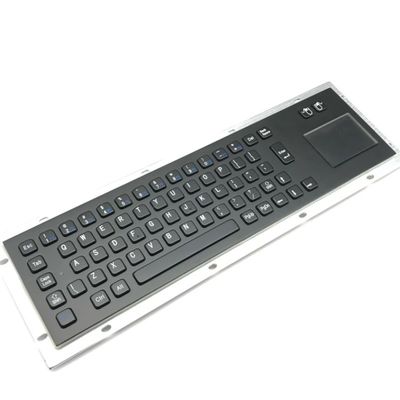

SUS316 stainless steel is available as an alternative to SUS304 for applications requiring additional corrosion resistance. Customized keyboard layouts and language configurations can also be supplied to meet specific project requirements.

The product specifications reference the following EMC standards:

• EN 55022:1988 + A1:2000 + A2:2003
• EN 55024:1988 + A1:2001 + A2:2003

The default keyboard layout is US English. Other language layouts can be customized according to project requirements, including Spanish, French, German, Portuguese, Russian, Arabic, and additional language options.

The SUS316 stainless steel option and customized keyboard layouts allow the product to be adapted to different operating environments and international markets.

• Integrated Input Solution: Combines a full keyboard with a capacitive touchpad and two physical buttons.
• Compact System Integration: Eliminates the need for a separate mouse, helping simplify terminal design.
• Industrial-Grade Durability: Stainless steel keys and panel provide a robust construction for demanding applications.
• Water and Dust Protection: IP65-rated enclosure protection for suitable industrial and public environments.
• Impact and Vandal Resistance: IK09-rated impact protection helps withstand physical abuse.
• Reliable Long-Term Operation: Minimum 2-million-keystroke service life.
• Broad System Compatibility: USB connectivity supports a range of commonly used operating systems.
