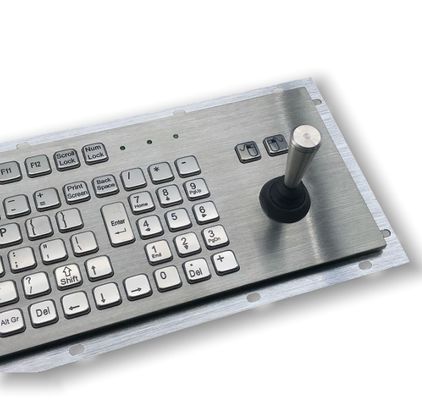

Industrial Stainless Steel Panel Mount Keypad with 8-Way Joystick – IP65/IK07 Sealed for Directional Control in Unsupervised Public Interfaces

1. Technical Specifications

Heavy-duty stainless steel panel-mount keypad with integrated 8-direction operating lever stick, enabling intuitive cursor navigation and menu selection without requiring a separate pointing device or touchscreen.

Rated IP65 (dust-tight and protected against water jets) and IK07 (high-impact resistance) – withstands wash-downs, spills, and physical abuse in high-traffic public settings.

Exceeds 2 million keystroke lifecycle for reliable, maintenance-free operation in continuous-use installations, reducing service intervals.

Panel and keys constructed of SUS304 stainless steel (SUS316 optional) to resist corrosion, chemicals, and weathering in outdoor or industrial environments.

Plug-and-play USB Type-A interface compatible with Windows, macOS, Linux, Android, and ARM-based control systems for rapid deployment.

2. Mechanical Features & 3. Environmental adaptability

Protection grade: IP65 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4. Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

5. Installation drawing

6. APPLICATION SITE

Engineered for 24/7 unsupervised or semi-supervised installations where directional control and extreme durability are required without touchscreen vulnerabilities: industrial crane control stations exposed to grease and vibration, airport directory kiosks requiring glove-friendly navigation, interactive museum displays in humid galleries, hospital wayfinding terminals needing frequent sanitization, ATM interfaces in outdoor vestibules where touchscreens may fail due to rain or frost, and fuel dispenser payment panels where gloved operation and impact resistance are critical for long-term reliability.

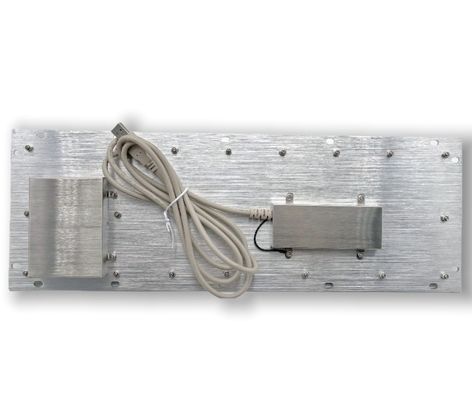

7. more pictures:
