Industrial 105keys pc keyboard.
Completely sealed waterproof & dust proof IP67
USB interface.
Technical Specifications

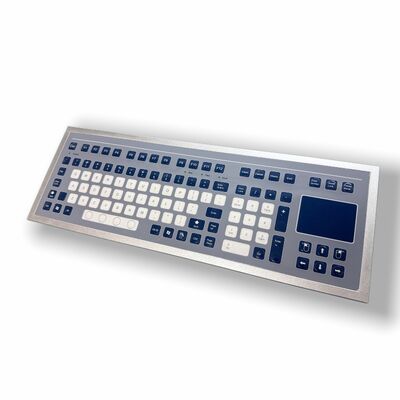

Industrial Membrane Keyboard 105 Keys With Touchpad Waterproof USB
Industrial membrane keyboard with touchpad.
105 keys + 2 touchpad keys, over 2 million key life cycle.
Compact design and highly reliable.
Provides waterproof, dustproof & explosionproof features (IP67/IK07).
Easy to clean and disinfect.
One-piece matte membrane on top, anti-static material optional.
USB port (Type-A) interface, plug & play for common operating systems, such as MS-Windows, MacOS, Unix, Linux, ArmOS, Android.
Mechanical Features
Panel board material: PET / Anti-static material is for option
Base board material: Aluminum alloy
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 464.5*164*18MM
Weight: 980g
Environmental adaptability
Op. Temp: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP67 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Russian, Arabic etc.
