1. Technical Specifications

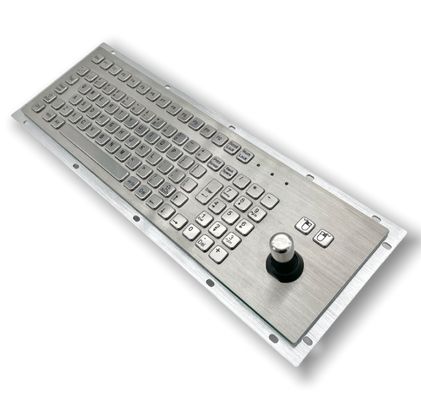

Heavy‑duty stainless steel panel‑mount keypad with integrated 8‑direction operating lever stick, designed for industrial control and navigation in harsh environments.
Rated IP65 (dust‑tight and protected against water jets) and IK07 (high‑impact resistance) – withstands wash‑downs, spills, and physical abuse.
Exceeds 2 million keystroke lifecycle for reliable, maintenance‑free operation in continuous‑use installations.
Panel and keys constructed of SUS304 stainless steel (SUS316 optional) to resist corrosion, chemicals, and weathering.
Plug‑and‑play USB Type‑A interface compatible with Windows, macOS, Linux, Android, and ARM‑based control systems.
2. Mechanical Features & 3. Environmental adaptability
| Panel board and keys material |
SUS304 Stainless-steel |
| Base board material |
Aluminum alloy |
| Key life cycle |
2million min |
| Key press force |
2~3N |
| Key travel length |
2MM |
| Dimensions |
424*148*88MM |
| Weight |
1750g |
| Operating temperature: |
-40℃～+65℃, |
| Op. RH |
10～95% |
| Storage temperature |
-40℃～+75℃ |
| Storage RH |
5～95% |
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4. Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6. APPLICATION SITE
This joystick‑integrated keypad is engineered for 24/7 unsupervised or semi‑supervised installations where directional control and extreme durability are required. Ideal for:
Industrial Control Panels: Machinery operation, crane controls, production line equipment, and outdoor control stations.
Public Navigation & Information Kiosks: Airport/station directories, interactive museum displays, hospital wayfinding, and university information terminals.
Transaction & Self‑Service Systems: ATM interfaces, ticketing machines, fuel dispensers, and cash handling equipment.
Harsh & High‑Traffic Environments: Withstands dust, moisture, frequent cleaning, and mechanical impact in demanding indoor/outdoor settings.

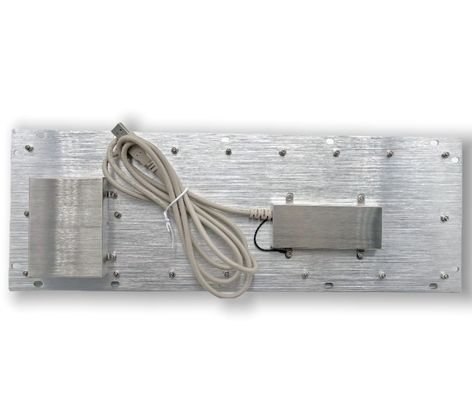

7. more pictures:
8.Please note:
All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.
If you have any question about this items,please feel free to contact us for further information,thank you.
