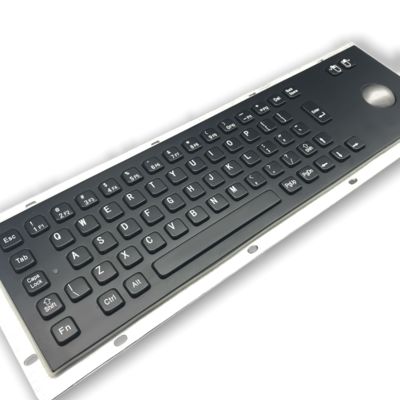

1. Technical Specifications
The keyboard has waterproof, dustproof & explosionproof features (IP64 / IK07).
Over 2 million key life cycle.
Industrial stainless-steel keyboard, integrates with maintenance-free design 38mm stainless-steel trackball.
The panel board and keys are made by SUS304 Stainless-steel (SUS316 is for option).
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2. Mechanical Features & Environmental adaptability
| Panel board and keys material |
SUS304 Stainless-steel |
| Base board material |
Aluminum alloy |
| Key life cycle |
2million min |
| Key press force |
2~3N |
| Key travel length |
2MM |
| Dimensions |
416*134*55MM |
| Weight |
1550g |
| Op. Temp |
-40℃～+65℃ |
| Op. RH |
10～95% |
| Storage temperature |
-40℃～+75℃ |
| Storage RH |
5～95% |
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
3. Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
4. Installation drawing
4. APPLICATION SITE
This keyboard is mainly targeted for use in unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones, and other explosion‑risk or harsh‑environment sites.
5. More pictures:
If you have any question about this items,please feel free to contact us for further information.
