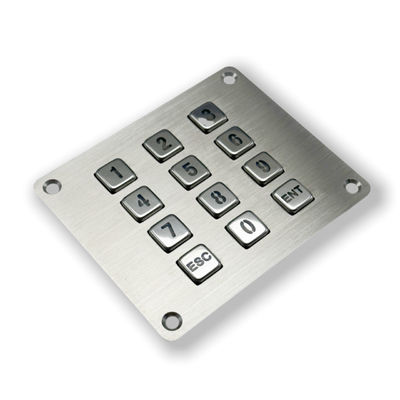

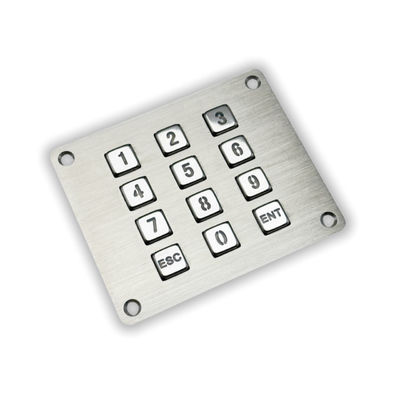

IP65/IK07 Rated Keypad : Built for Harsh Environments - Stainless Steel, Backlit, 2M+ Cycles

1.Technical Specifications

This keypad delivers uncompromising reliability in the toughest environments. Engineered with a fully sealed SUS304 stainless steel body (SUS316 optional), it achieves IP65 dust/water resistance and IK07 impact protection, surviving harsh outdoor, washdown, and high‑abuse settings.

Core Features for Demanding Applications:

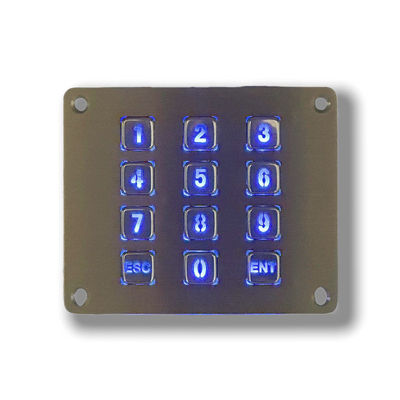

• High‑Visibility Backlit Keys​ – All characters illuminate when powered; customizable backlight colors​ available for role coding or low‑light operation.

• Exceptional Durability​ – Keys are rated for over 2 million cycles, ensuring long‑term performance in high‑traffic or 24/7 applications.

• Universal Compatibility​ – Plug‑and‑play USB Type‑A​ interface works instantly with Windows, macOS, Linux, Android, and other common systems.

• Compact & Reliable Design​ – Space‑saving footprint with industrial‑grade construction for continuous operation in control panels, kiosks, and outdoor terminals.

Ideal for industrial control, outdoor payment systems, secure access panels, and any setting where exposure to moisture, dust, impact, or extreme temperatures demands a keypad that won’t fail.

2.Mechanical Features & Environmental Adaptability

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

3.Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

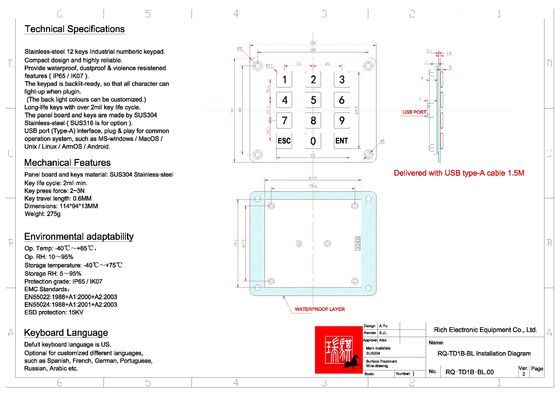

4.Installation Drawing

5.Application Site

• Public Access & Information Kiosks: Universities, shopping malls, hotels, airports, train stations.

• Self‑Service & Payment Terminals: Ticket vending machines, fuel dispensers, ATMs/cash dispensers, public internet phones.

• 24/7 Outdoor & High‑Traffic Points: Any environment exposed to weather, frequent cleaning, or public use where standard keypads would fail.

With plug‑and‑play USB connectivity and IP65/IK07 protection, it delivers maintenance‑free operation—keeping public services secure, responsive, and always available.
