IP65 / IK07 Mini Stainless Steel KeyPad waterproof dustproof anti-vandalism 16 Keys Metal Industrial Numeric Keypad USB 232 485 Rear Panel Mounted -40℃

1.Technical Specifications

Stainless-steel 16 keys Industrial numberic keypad.

Compact design and highly reliable.

Provide waterproof, dustproof & violence resistance features ( IP65 / IK07 ).

Long-life keys with over 2 million key life cycle.

The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).

Integrate buzzer which gives a "BEEP" when any key pushed.

Provide RS485/RS232C/Scan Matrix/USB interface.

RS232C port (DB9F) interface, powered from PS2 keyboard port or USB port.

2.Mechanical Features

Panel board and keys material: SUS304 Stainless-steel

Base board: SUS304 Stainless-steel

Key life cycle: 2mil min.

Key press force: 2~3N

Key travel length: 0.6MM

Dimensions: 153.5*133.5*19.3MM, panel size: 123.5*103.5MM

Weight: 660g

3.Environmental adaptability

Op. Temp: -40℃～+65℃,

Op. RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP65 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4.Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

Additional Braille can be customized.

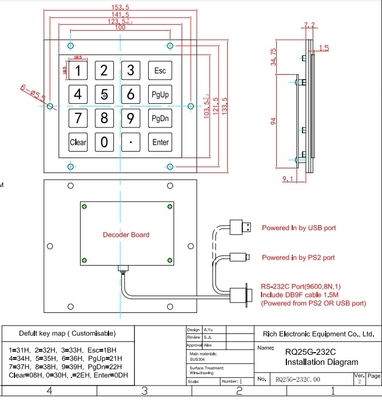

5.Installation Drawing

6.APPLICATION  SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

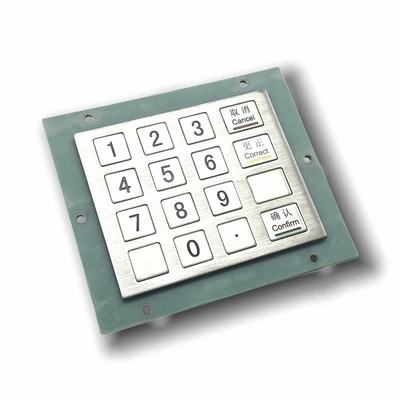

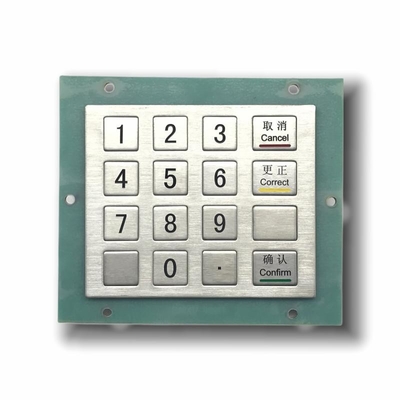

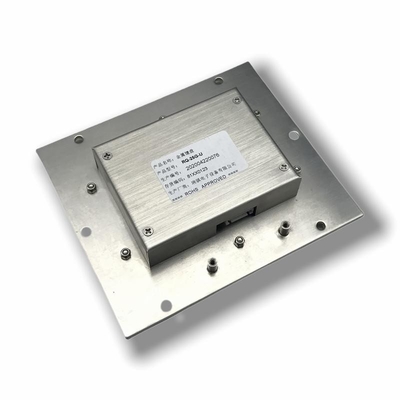

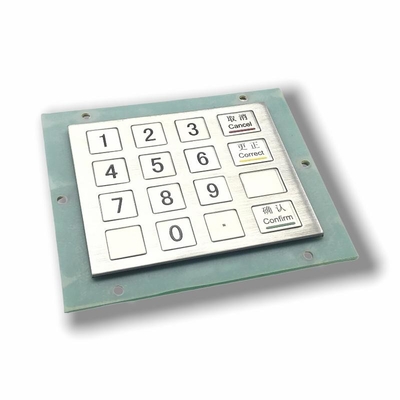

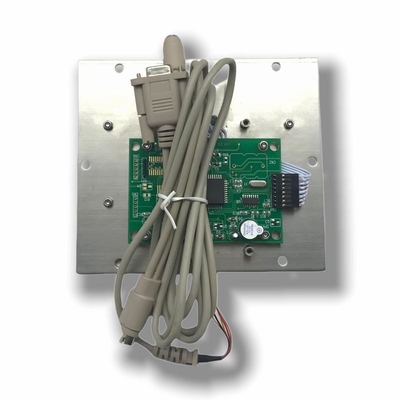

7. more pictures:

8.Please note:

All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.

If you have any question about this items,please feel free to contact us for further information,thank you.
