SUS304 Industrial Desktop Keyboard IP67 Stainless Steel Keyboard Violence Resist

Desktop Industrial Keyboard F-Tp-352140 Industrial Stainless-Steel Keyboard IP67

Technical Specifications

Desktop industrial stainless-steel keyboard, integrate with full functional 2 keys Touch-pad.

Provide waterproof, dustproof, violence resist & explosionproof features ( IP67 / IK07 ).

Highly reliable design, over 2 million key life cycle.

Signal isolation barrier is for option.

The keyboard case and keys are made by SUS304 stainless-steel ( SUS316 is for option ).

USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

Mechanical Features

Panel board and keys material: SUS304 Stainless-steel

Polyurethane ( PU) pouring sealing

Key life cycle: 2 million min.

Key press force: 2~3N

Key travel length: 0.6MM

Dimensions: 352*140*21.5MM

Weight: 3050g

Environmental adaptability

Op. Temp: -40℃～+65℃,

Op. RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP67 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

Installation drawing

6.APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

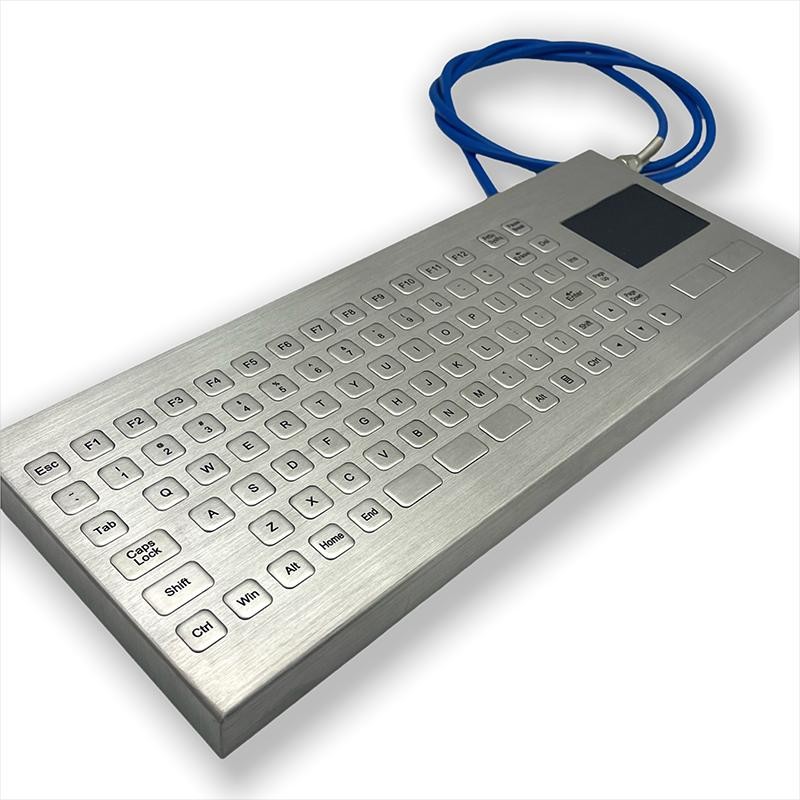

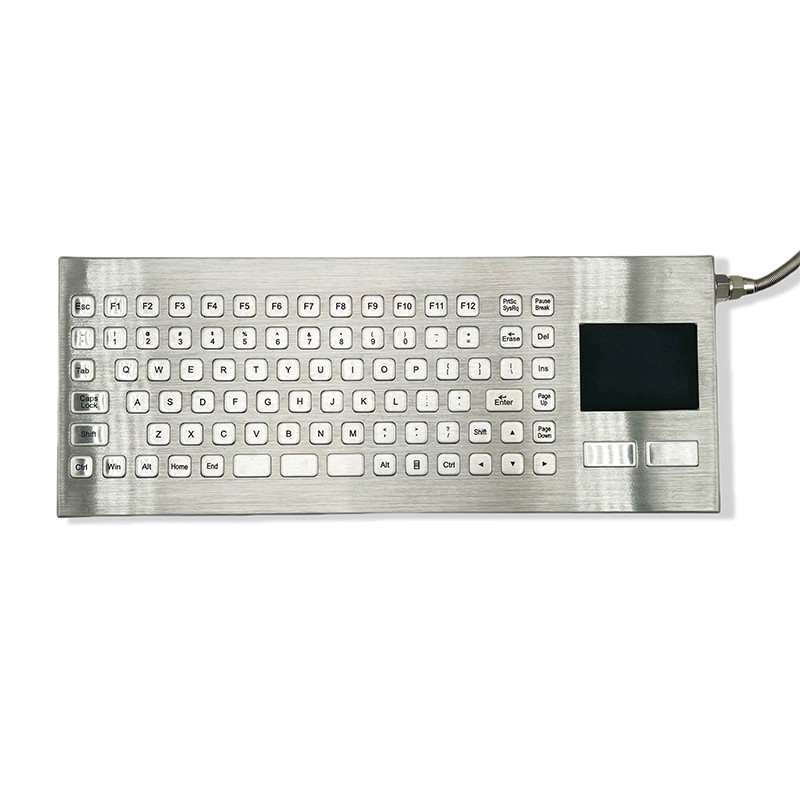

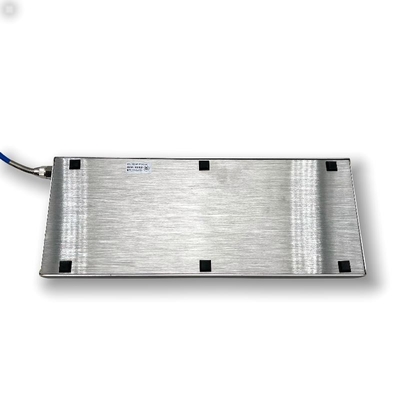

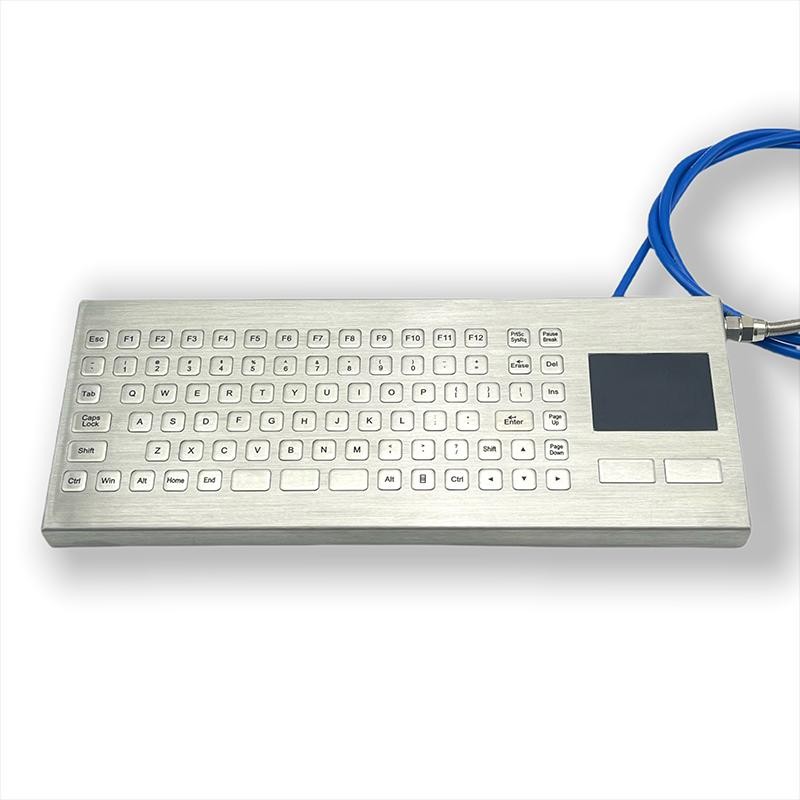

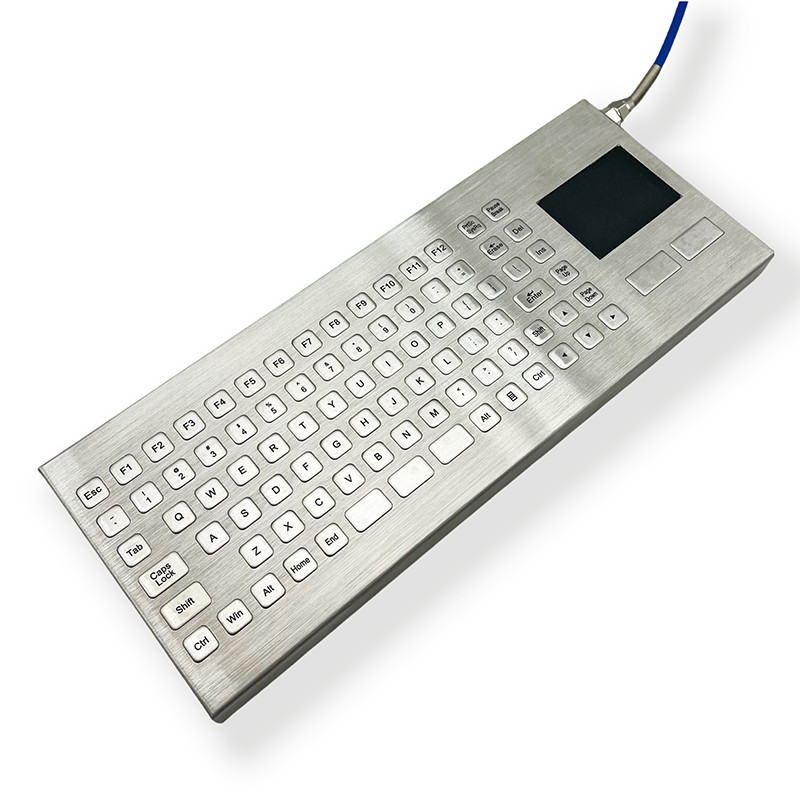

7. more pictures:
